What are Key Considerations for Selecting Backwash Filters

JX Filtration September 9, 2025 Backwash Filter

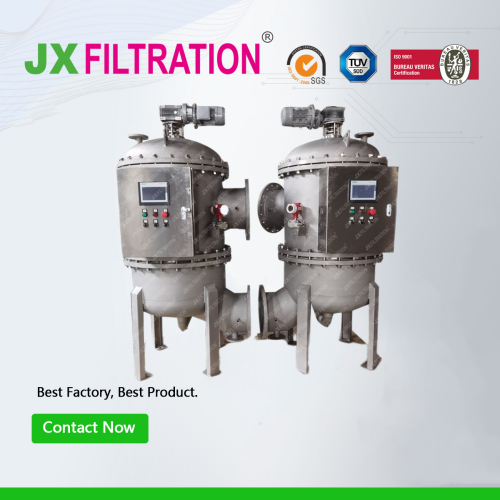

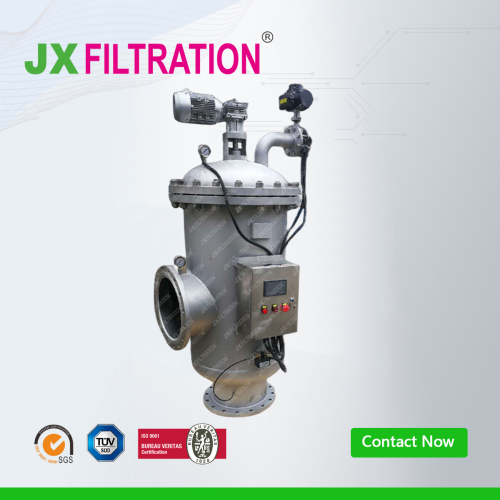

An automatic backwash filter is a self-cleaning filtration system designed to ensure continuous operation. When impurities accumulate and the inlet–outlet pressure differential reaches the preset value, or after the set time interval, the control system automatically initiates the cleaning process.

Main Features

Zero downtime maintenance – The backwash process does not require shutdown, ensuring uninterrupted system operation.
Low energy consumption – Backwash water consumption is only about 0.08%–1% of the filtered water.
Flexible installation – Suitable for vertical, horizontal, or inverted installation.

Selection Considerations

Filtration accuracy vs. pressure drop
The higher the filtration precision, the greater the pressure drop. It is recommended to allow sufficient pressure margin.
Backwash water source
Typically uses the system’s own medium for backwash, no external water source required.
Control cabinet protection rating
For marine applications, select control cabinets with IP65 or above.
Discharge outlet position and diameter
Ensure smooth discharge to prevent secondary blockage caused by impurities.

Typical Applications

Application System	Recommended Product Type
Main engine seawater cooling	Automatic backwash seawater filter
Ballast water pretreatment	High-precision backwash filter (≤100 μm)
Lubrication oil circuit	Dual-stage coarse and fine filtration with bypass alarm
HVAC chilled water system	Medium-precision (300 μm) automatic backwash filter
Exhaust gas scrubbing system	Corrosion-resistant, automatic discharge type filter
